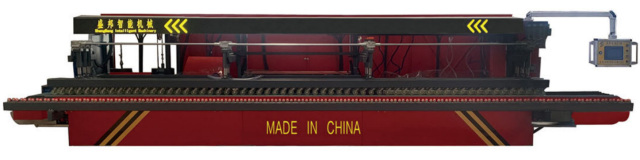

MB3015-20 Full-Automatic CNC Horizontal Intelligent Edging Machine.
Optional spare part: loading conveyor
Features
This machine adopt PLC control with touch screen、frequency control of motor speed and memory function, with manual and automatic two operation types, can choose manual or automatic operation separately, the grinding part can be selected independently. The stone feeding can choose continuance or discontinuity. Equipped new conveyor frame、three electric presssure lever, install waterproof and dustproof universal wheels, with back board connection function can continuity process stone’s each edge. Automatic lift adjustment can sync setting. It can make rough grinding、fine grinding and polishing with different size and thickness stones in one time, It’s mainly used for grinding R shape, flat edge with chamfering, up and down both side with R shape, up and down both side chamfering, the effect after processing is high brightness and no drawing, the maximum processing speed is 4m/min. This machine with high precision、quick efficiency、simple operation、convenient maintenance and eliminates the defacts of manual processing.
Technical Parameters
Working Speed: 1m-3m/min
The minimum processing size of stone: 10mm*100mm*300mm
The maximum processing size of stone: 30mm*3000mm*1500mm
The maximum processing thickness of stone: 100mm
Total power: 30KW
Body Weight: 5200KG
Overall Dimensions: 1100mm*2000mm*2000mm
