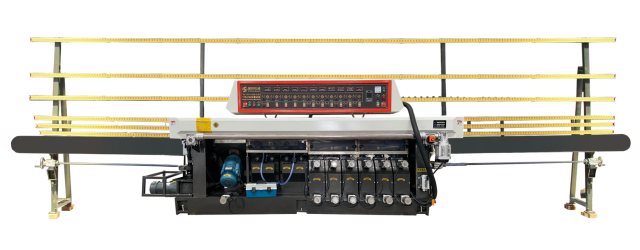

MB641-11 Multi-Functional Automatic Straight Edge Chamfering Machine
This machine adopt water grinding wheel,configured with worm buckle joint, electric control the motor’s front and back move, up and down lifting, it mainly used for grinding all kinds of flat stone’s straight bottom edge、straight bottom edge 45°chamfering、straight edge molded、hitom back cut，can make rough grinding、fine grinding and polishing in one time. The effect after processing with high brightness and no drawing, the maximum processing speed is 5M/min. The stone’s processing enter speed and quantity can be adjust. this machine with high precision、quick efficiency、simple operation、convenient maintenance and eliminates the defacts of manual processing.
Working Speed: 0.8m-5m/min
The minimum processing size of stone: 10mm-80mm*80mm
Total power: 40KW
Body Weight: 3200KG
Overall Dimensions: 7500mm*1000mm*2000mm
